Description
*Always refer to your vehicles owner’s manual for vehicle towing capacity
Note: Towbar Only - addition of wiring loom (SKU: UNT272) & 7 Pin Flat Socket (SKU: UNT032BLIS) also required.
Note: Confirm this product fits your vehicle in the "vehicle application" table below.

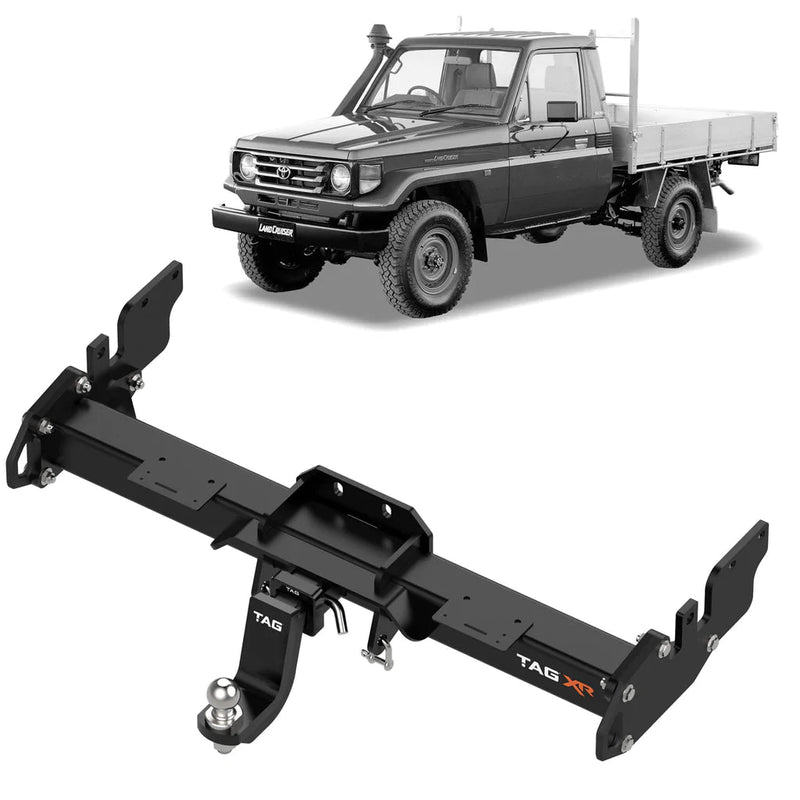

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Featuring:
-
89mm x 89mm Extreme Duty Reinforced Crossbar
-
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with beveled edges to suit soft-shackles.
-
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
-
Highly durable, textured Extreme Duty Powder Coated Finish
-
Dual top-mounted Trailer & Anderson Plug Mounts
-
Class 4 Towbar - 50mm Square Hitch Receiver
-
TAG Limited Lifetime Warranty
-
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Fits Vehicle Year To: 2012
- Fits Vehicle Year To Month: 07
- Fits Vehicle Year From: 1996
- Fits Vehicle Year From Month: 10
- Fitting Time Approx: 1 hr
- Exposure: Exposed
- Coating: Powder-Coated
- Hitch Type: 50mm Square Hitch Receiver
- Recovery Points: 2
- Recovery Loadtested: 4500KG WLL
- Ball Weight: 350
- Towing Capacity: 3500
Vehicle Application:
| MAKE | MODEL | FROM | TO | BODY | SERIES | ENGINE | VARIANT | DRIVETRAIN |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | LANDCRUISER | 03/2007 | - | Single Cab | 79 Series | 1VD-FTV | 4.5L | Diesel | VDJ79R, 70TH ANNIVERSARY SPECIAL EDITION, GX, GXL, WORKMATE | Manual 4WD |
| TOYOTA | LANDCRUISER | 03/2007 | - | Single Cab | 79 Series | 1VD-FTV | 4.5L | Diesel | VDJ79R, 70TH ANNIVERSARY SPECIAL EDITION, GX, GXL, WORKMATE | Manual 4WD |
| TOYOTA | LANDCRUISER | 01/2007 | - | Cab Chassis | VDJ79, VDJ79R | 1VD-FTV | 4.5L | Diesel | TD | AWD |
| TOYOTA | LANDCRUISER | 08/1999 | - | Cab Chassis | HZJ79L-TJM | 1H-Z | 4.2L | Diesel | MINE SPEC | AWD |
| TOYOTA | LANDCRUISER | 08/2001 | 01/2007 | Cab Chassis | HDJ79R | 1HD-FT | 4.2L | Diesel | TD | AWD |
| TOYOTA | LANDCRUISER | 10/1999 | 10/2007 | Single Cab | 79 Series | 1H-Z | 4.2L | Diesel | HZJ79R | Manual 4WD |
| TOYOTA | LANDCRUISER | 01/1999 | 01/2007 | Single Cab | 79 Series | 1FZ-FE | 4.5L | Petrol | FZJ79R | Manual 4WD |
| TOYOTA | LANDCRUISER | 01/1990 | 01/2007 | Single Cab | HZJ75RP, HZJ79R | 1H-Z | 4.2L | Diesel | HZJ79R | AWD |
| TOYOTA | LANDCRUISER | 08/1999 | 04/2006 | Single Cab | FZJ79, FZJ79R | 1FZ-FE | 4.5L | Petrol | FZJ79R | AWD |
| TOYOTA | LANDCRUISER | 08/1992 | 08/1999 | Single Cab | FZJ75, FZJ75RP | 1FZ-FE | 4.5L | Petrol | FZJ75R | AWD |
| TOYOTA | LANDCRUISER | 01/1992 | 01/1999 | Hardtop | 75 Series | 1FZ-FE | 4.5L | Petrol | FZJ75R | Manual 4WD |
| TOYOTA | LANDCRUISER | 01/1992 | 01/1999 | Single Cab | 75 Series | 1FZ-FE | 4.5L | Petrol | FZJ75R | Manual 4WD |
| TOYOTA | LANDCRUISER | 03/1990 | 08/1999 | Hardtop | 75 Series | 1H-Z | 4.2L | Diesel | HZJ75R | Manual 4WD |
| TOYOTA | LANDCRUISER | 03/1990 | 08/1999 | Ute | 75 Series | 1H-Z | 4.2L | Diesel | HZJ75R | Manual 4WD |
| TOYOTA | LANDCRUISER | 01/1990 | 08/1999 | Hardtop | 73 Series | 1H-Z | 4.2L | Diesel | HZJ73R | Manual 4WD |
