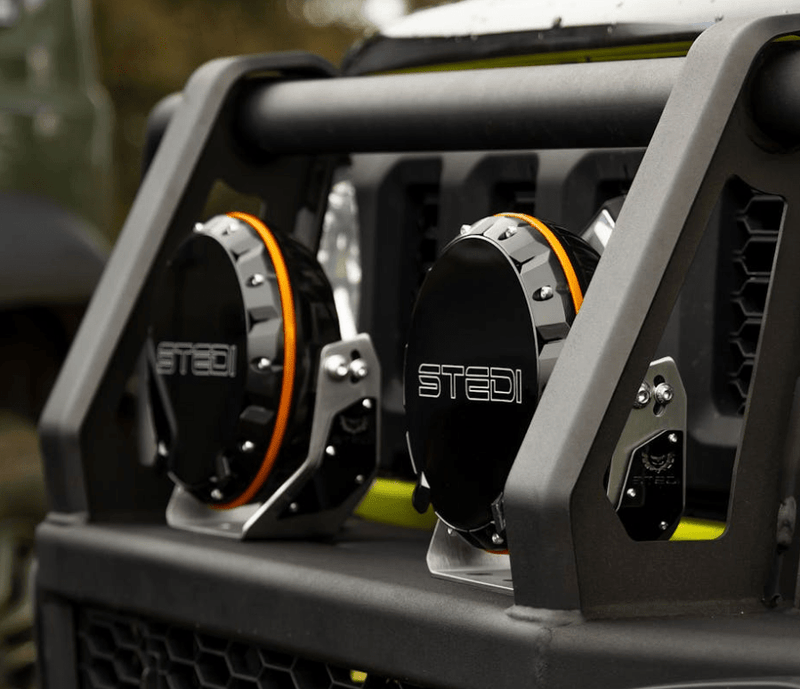

Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armour with laser-cut STEDI™ branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel play nicely equally on a Sandy Taupe Landcruiser as it will on a Magnetic Grey Ranger.

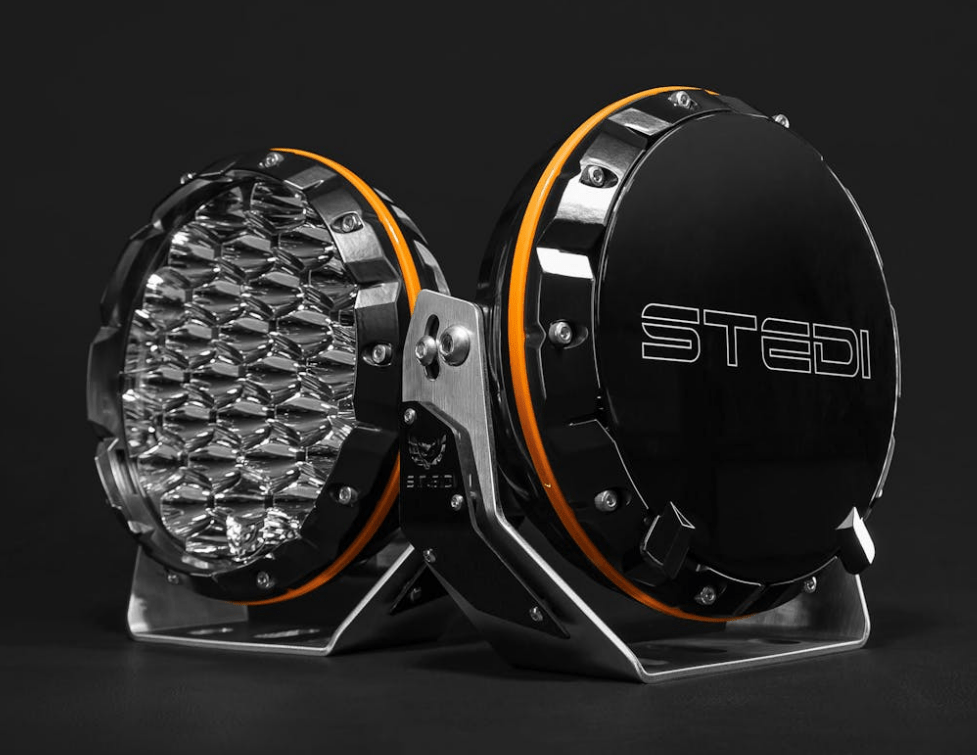

It's been a few years since the inception of the original Type-X™. We’ve taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X™ Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the near field and transition beautifully with the spot beam.
The 7" Type-X™ Sport; our most affordable driving light yet, with the inherented STEDI™ ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance of other offerings on the market and you will be convinced that the 7" Type-X™ Sport remains untouched.
Tech Specs
| LED |
32 x Osram Oslon SSL |
| RAW LUMENS |
16,640 (Pair) |
| TESTED LUMENS |
12,820 (Pair) |
| AMP DRAW |
6.4A @ 13.2v (each) |
| POWER DRAW |
85W (each) |
| CANDELA |
819,200cd |
| BEAM PATTERN |
4 x Spread 28 x Spot Beam |
| INGRESS PROTECTION |
IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) |
5700K |
| VOLTAGE COMPATIBILITY |
12v & 24v |
| LUMEN MAINTENANCE |
50,000 LM-80 |
| WEIGHT |
2.250kg (each) |
| OPERATING TEMP |
-40°C - 60°C |

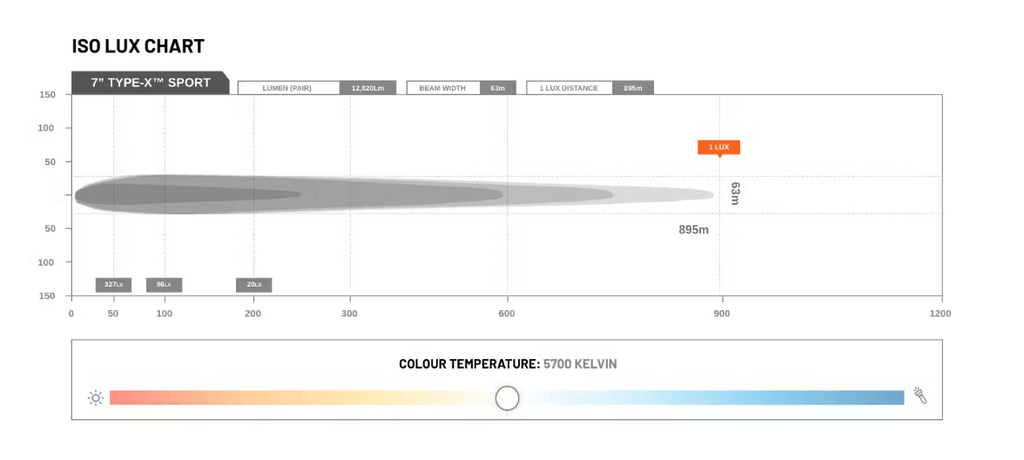

| PHOTOMETRIC DATA |
| 10 m |
8,129 L |
| 50 m |
327 Lx |
| 200 m |
20 Lx |
| 300 m |
9 Lx |
| 400 m |
5 Lx |
| 895 m |
1Lx |
What's Included
- 2 x STEDI 7" TYPE-X Sport
- 2 x STEDI Black Out Covers

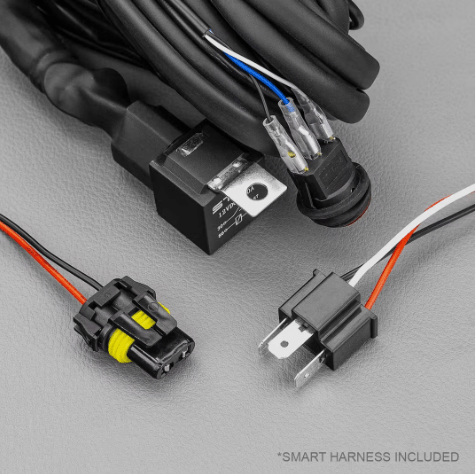

- 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
- Wiring Instructions
