Description
We welcome the Type-X™ Sport into the STEDI™ bloodline; our most affordable driving light yet. The goal of STEDI™ is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.

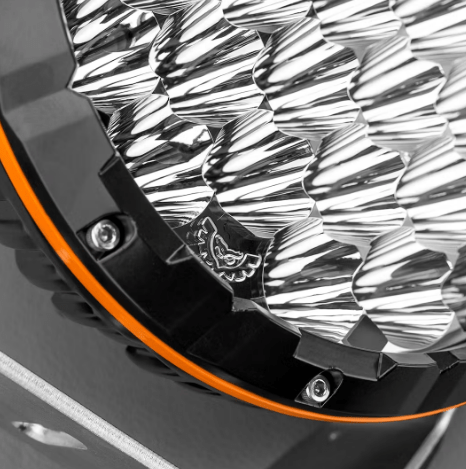

The Type-X™ Sport has adopted a lot of the Type-X™ DNA, but we’ve increased the depth of the optics by 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield and transition beautifully with the spot beam.

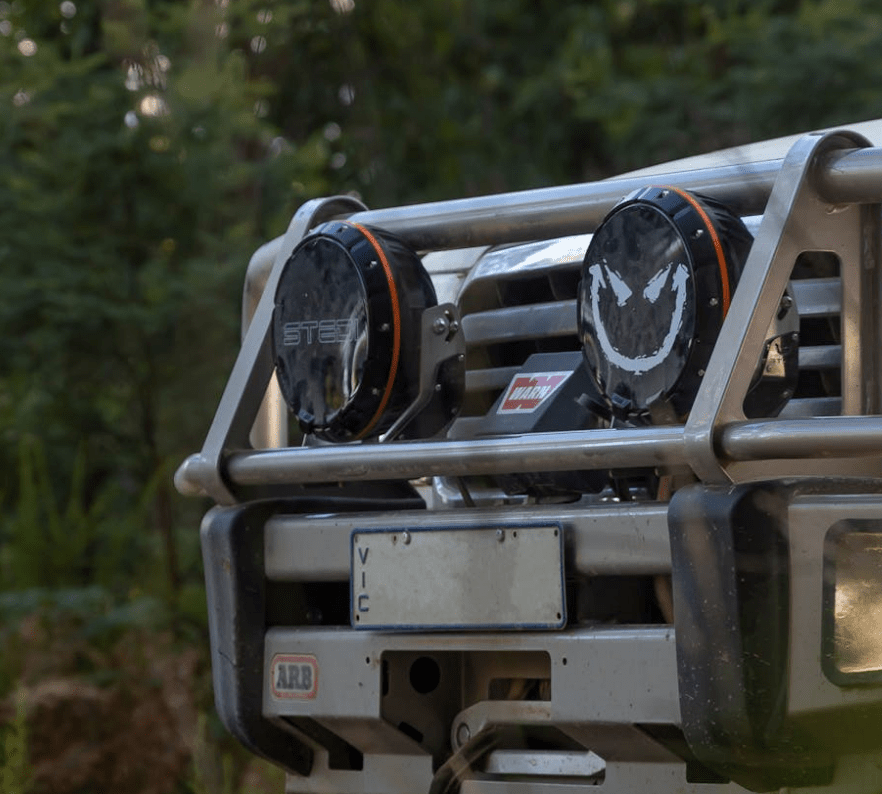

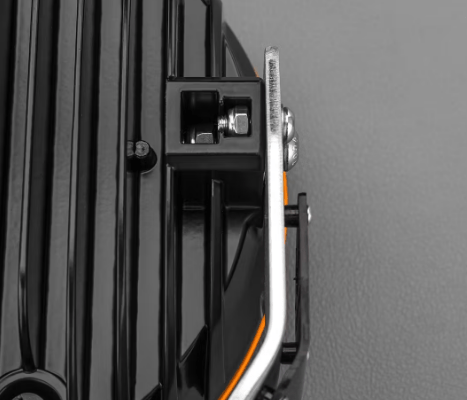

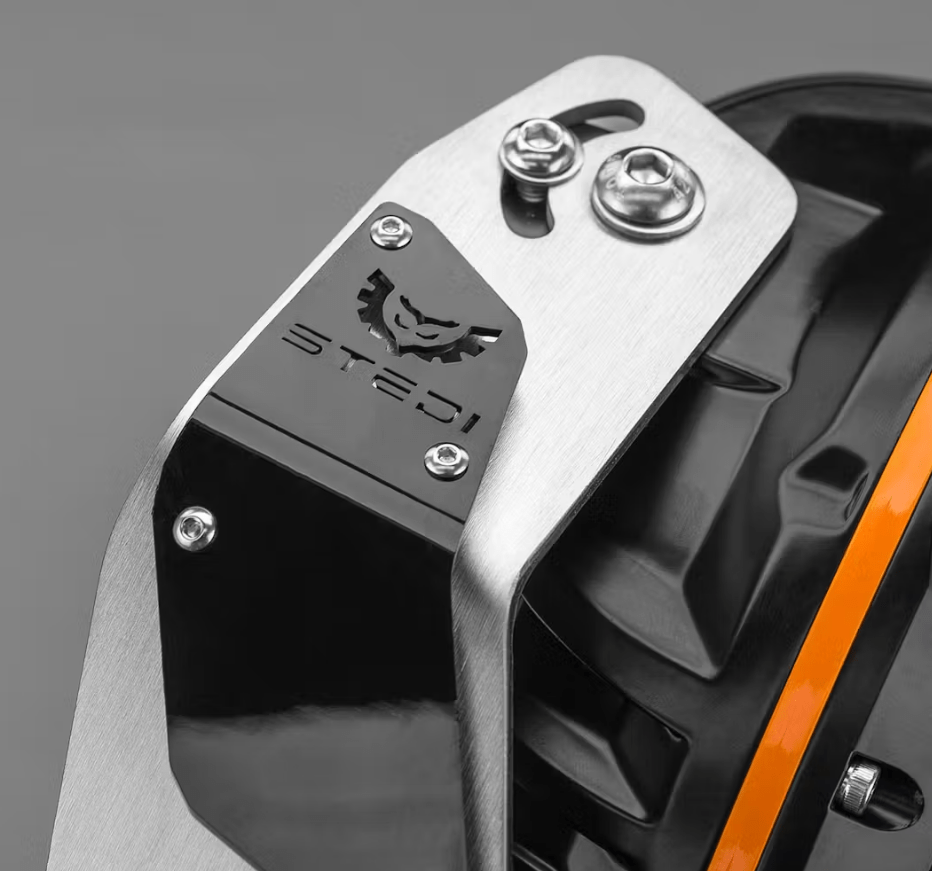

Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI™ branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.
Tech Specs
| LED | 36 x Osram Oslon SSL |
| RAW LUMENS | 20,780 (Pair) |
| TESTED LUMENS | 14,950 (Pair) |
| AMP DRAW | 9.8A @ 13.2v (each) |
| POWER DRAW | 129W |
| CANDELA | 1,102,500cd |
| BEAM PATTERN | 4 x Spread 32 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 3.35kg (each) |
| OPERATING TEMP | -40°C - 60°C |

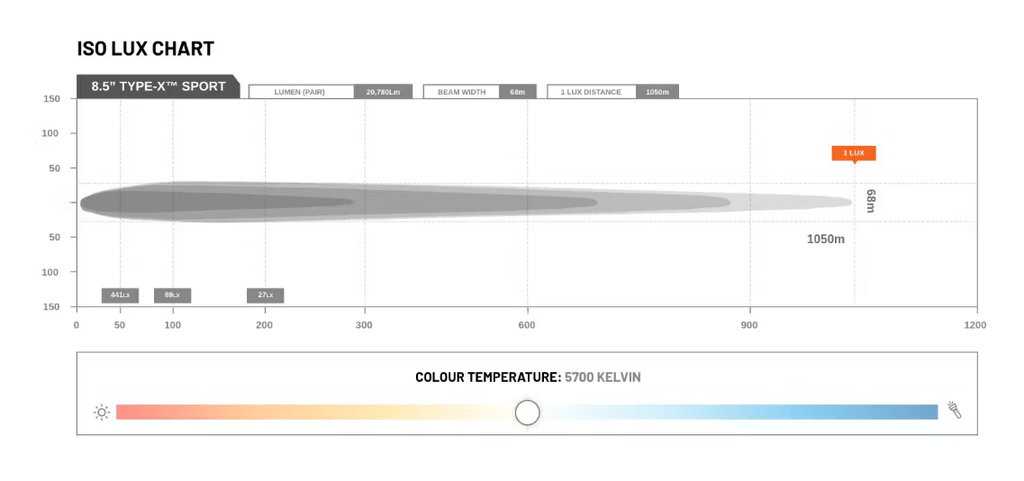

| PHOTOMETRIC DATA | |
| 10 m | 11,025 Lx |
| 50 m | 441 Lx |
| 200 m | 27 Lx |
| 300 m | 12 Lx |
| 400 m | 6 Lx |
| 1,000 m | 1.1 Lx |
| 1,050 m | 1 Lx |
What's Included
- 2 x STEDI TYPE-X Sport
- 2 x STEDI Black Out Covers

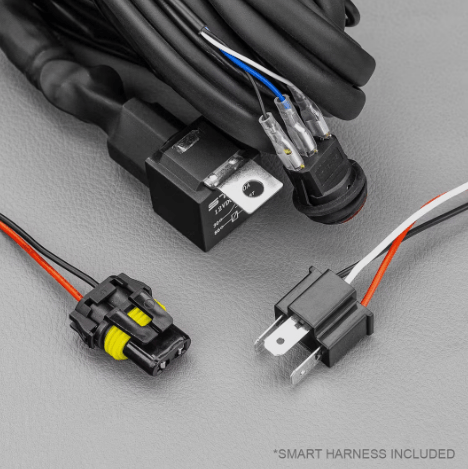

- 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
- Wiring Instructions
