Description
The EVO family continues to grow, but this time with a little twist. We have been tirelessly working on another exciting addition to join the EVO bloodline and taken one of our legacy driving lights QUAD PRO™ and incorporated significant innovative enhancements, to develop the next generation of rectangular shaped driving lights. Infused with the quintessential EVO DNA, resulting in a more organically shaped driving light that delivers superior performance, QUAD EVO not only integrates cutting-edge technology but also exemplifies superior design.
Designed as a modular system, QUAD EVO features a centre module and a side module. QUAD EVO centre module is equipped with 23 CREE XP20 LEDs, utilising a combination of spot + flood reflectors for optimal optical performance. QUAD EVO side module consisting of 18 CREE XP20 LEDs, enhanced by 5x widespread reflectors, collectively provides a staggering 210-degree distribution of pure light. This transforms the typical limitations associated with driving lights of this size into unparalleled strengths.

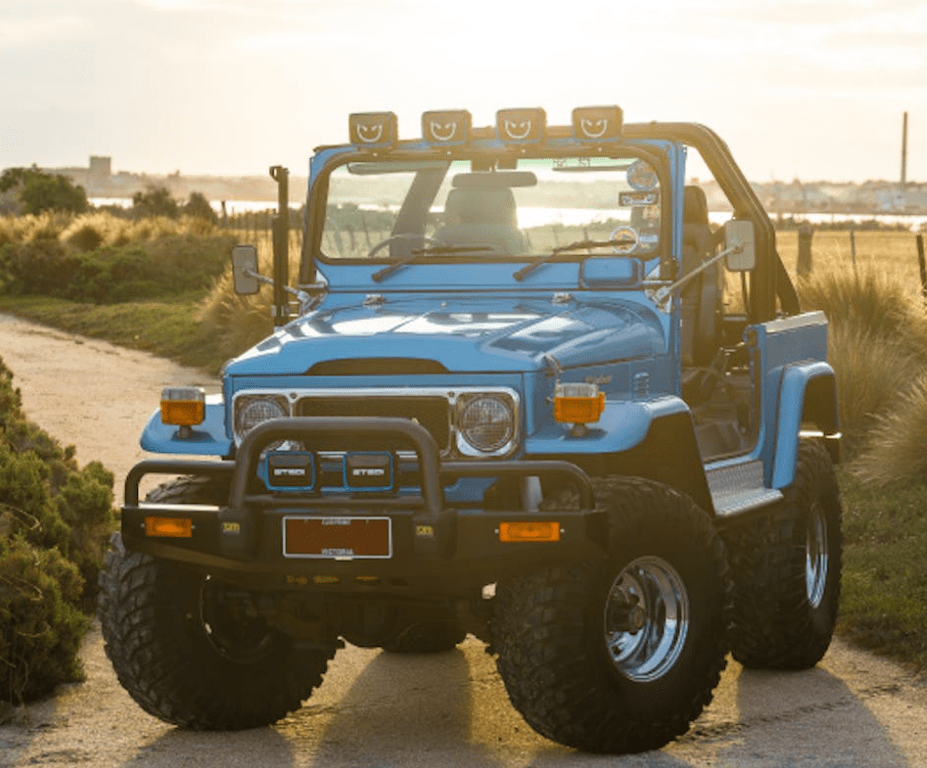

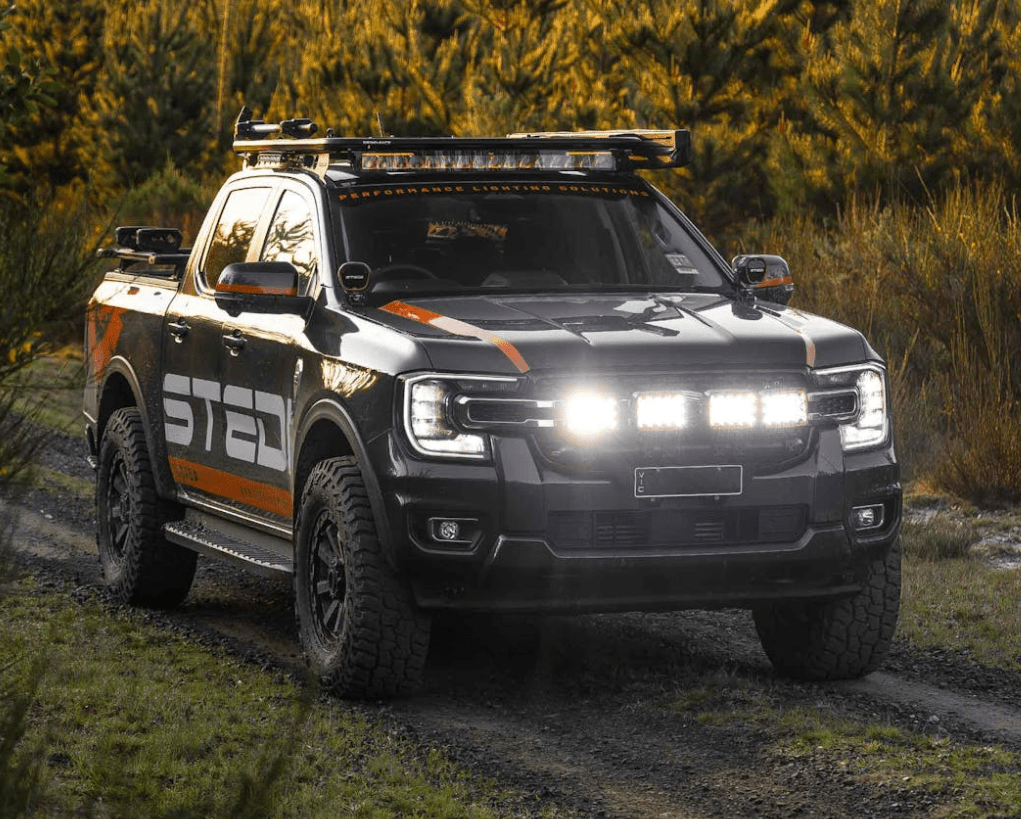

One of the prominent features QUAD EVO brings forth is the reconfigured bracket system that provides a variety of mounting solutions. Our team of designers and engineers exercised thoughtful design that embraces signature EVO aesthetics and applied it to the QUAD EVO design housing, offering a minimal and sleek, less obstructive mounting solution. This refined bracket adaption will see QUAD EVO as a perfect driving light for modern bull bars with minimal mounting clearances and perfect for a roof rack array and additionally be a potential candidate for smaller off-roading vehicles like ATVs.
Tech Specs
| LED | 18 x CREE XP20 + 5 x Lens (each) |
| RAW LUMENS | 22,080 (pair) |
| TESTED LUMENS | 5,885lm (each) 11,726lm (pair) |
| AMP DRAW | 6.0A (pair) @24V |
| POWER DRAW | 145.2W (pair) |
| CANDELA | 207,000 Flood (each) 528,000 Spot (each) |
| LUX | 578 m (pair) |
| BEAM PATTERN |
32 x 30° Spread 32 x 4° Pencil Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5000K |
| LUMEN MAINTENANCE | 30,000 LM-80 |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| WEIGHT | 2.35kg (each) |
| OPERATING TEMPERATURE | -40°C to 60°C |
What's Included
- 1 x STEDI™ Quad EVO LED Driving Light (side module)
- 1 x Cast Alluminium Quad EVO Bracket

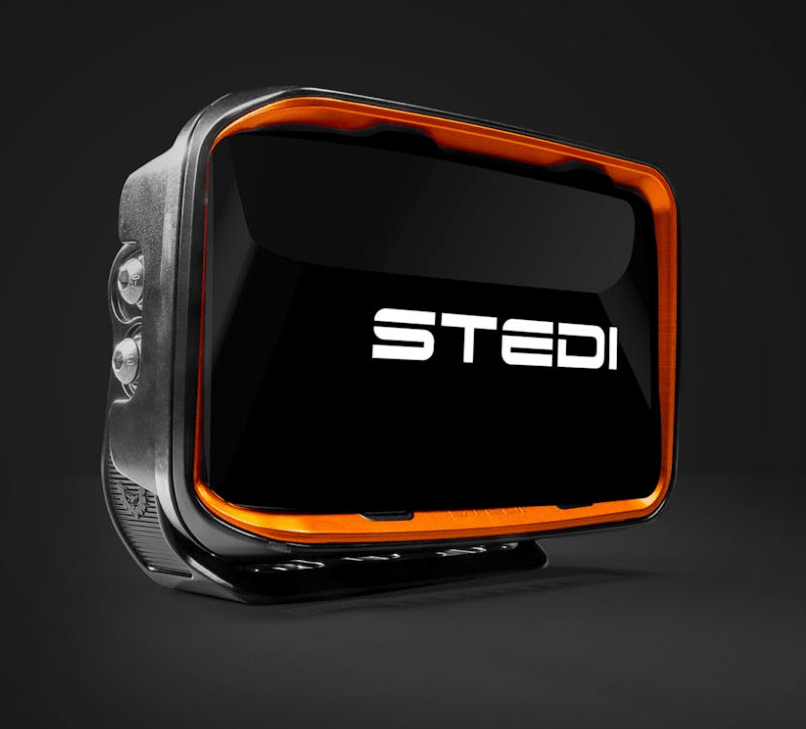

- 1 x Blackout STEDI™ Cover (left)
- 1 x Blackout STEDI™ Cover (right)
- 1 x Orange Fascia Ring (left)
- 1 x Orange Fascia Ring (right)
- 1 x Grey Fascia Ring (left)
- 1 x Grey Fascia Ring (right)
- Mounting Hardware
- 1 x DT Wire Tail
