Description

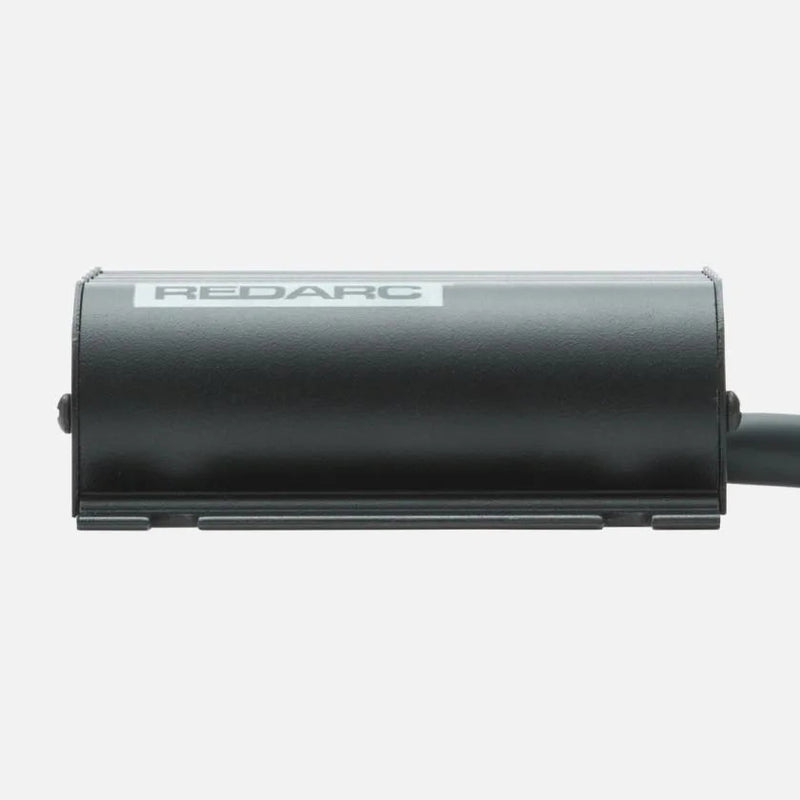

REDARC BCDC1220 — 20A Under-Bonnet DC Battery Charger
Keep your auxiliary battery charging while you drive with the REDARC BCDC1220. This compact 12V, 20A DC-DC charger lives under the bonnet and delivers true multi-stage charging so your battery reaches and maintains a full charge, even on modern vehicles.
Built for Australian conditions, the unit is fully sealed and potted for heat, dust, water and vibration. It accepts 9 to 32V input, so it works on both 12V and 24V systems, and it applies the correct charge profile for AGM, Gel, Calcium, VRLA and standard lead-acid batteries. Quiet operation, tidy wiring, and optional stainless mounting brackets make for a neat, reliable install.
Key features
-
20A multi-stage DC-DC charging while you drive
-
Under-bonnet rated with sealed electronics (IP style protection)
-
Wide input range: 9 to 32V for 12V and 24V vehicles
-
Battery type selection for correct charge profile
-
Start battery isolator function
-
Fanless for silent operation
-
Compact size with vehicle-specific brackets available
Install note: For best results, have a qualified auto electrician fit the unit and use quality fusing and brackets.
| Warranty | 2 Years |
|---|---|
| gtin_barcode | 9338628002542 |
| brand | REDARC |
| Battery Chemistry | AGM, Gel, Standard Lead Acid, Calcium, Not suitable for Lithium (LiFePO4) |
| Power Type - AC DC | DC TO DC |
| Nominal Output Power | 148W (12V vehicle) / 294W (24V vehicle) |
| Input Fuse Rating | 16A to 23A (Not supplied) |
| Suitable For 12V Systems | Yes |
| Suitable For 24V Systems | Yes |
| MPPT Solar Regulator | No |
| Cabin/ Canopy Install | Yes |
| No Load Current | <100mA |
| Trailer Install | Yes |
| Engine Bay Install | Yes |
| Max. Charging Voltage | 15.3V |
| Output Fuse Rating | 31A (Not supplied) |
| Operating Temperature | -20°C to 80°C |
| Output Voltage | 12V DC |
| Max. Rated Output Current | 11A (12V vehicle) / 20A (24V vehicle) |
| Input Voltage | 9 - 32V |
| Standby Current | <5mA |
| Connector Type | Bare wire |
| Weight | 450 g |
| width | 120 mm |
| height | 37 mm |
| depth | length | 100 mm |
