Description
Our individual Type-X™ Pro gives you the option to take things to the next level. We’ve been inspired by the combinations of the Type-X™ Pro fanatics, and have provided the option to achieve the most enviable Type-X™ Pro combination. These lights are the epitomy of our commitment to maximising light output and reliability, at levels that surpass the most respected players in the game.
Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly-functional beam pattern. An astonishing beam throw coupled with a homogeneous wide beam, will have you insist on driving only when the sun's down.

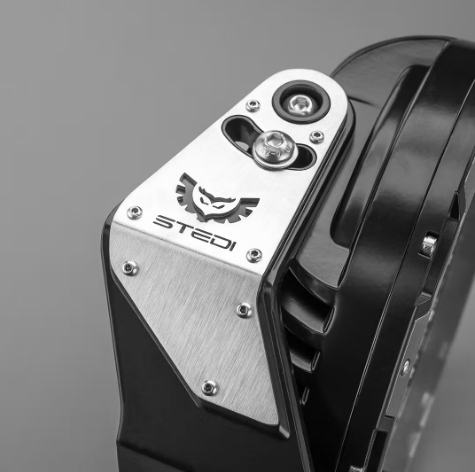

Forget folded steel brackets, it's all yesterday's news. The Type-X™ PRO is all about pushing boundaries. The bracket system is a 10mm thick high-pressure die-cast aluminum marvel of engineering. Our Type-X™ PRO bracket was designed to withstand extreme and prolonged corrugations time and time again. While they were designing for speed of production & cost efficiency, true to STEDI's signature design principles, we added layers of complexity and additional assembly operations. Now, just imagine the lengths we went to with the optics.
Tech Specs
LED | 37 x Oslon High-Flux LED |
RAW LUMENS | 13, 135 |
TESTED LUMENS | 7, 935 |
AMP DRAW | 10.4A @ 13.2v |
POWER DRAW | 137W |
CANDELA | 667, 012 cd |
BEAM PATTERN | 6 x Spread 31 x Spot Beam |
INGRESS PROTECTION | IP68 | Submersible up to 3m |
COLOUR TEMP (CCT) | 5700K |
VOLTAGE COMPATIBILITY | 12v & 24v |
LUMEN MAINTENANCE | 50,000 LM-80 |
WEIGHT | 2.860kg |
PHOTOMETRIC DATA | |
10 m | 6670 Lx |
50 m | 266.8 Lx |
200 m | 16.6 Lx |
300 m | 7.4 Lx |
400 m | 4.1 Lx |
836 m | 1 Lx |
What's Included
- 1 x STEDI Type-X PRO LED Driving Light
- 1 x Protective STEDI Black Out Cover
- 1 x Grey Colour Ring
- 1 x Orange Coloured Ring
- Complete Stainless Steel fastener kit
- Fitting Instructions
NOTE: Wiring Harness is NOT included
