Description
At the core of the ST-X 21.5 Inch you will find world-class A grade 15W reverse facing emitters pushing out 4010 Lumens at a stunning 5000K colour temperature.

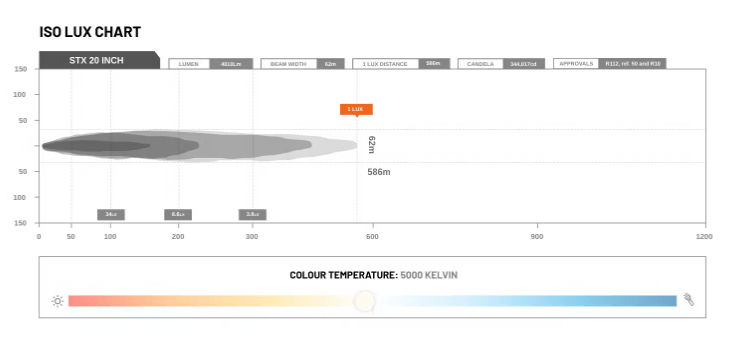

The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 586m with very little light within the first 80m. The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.

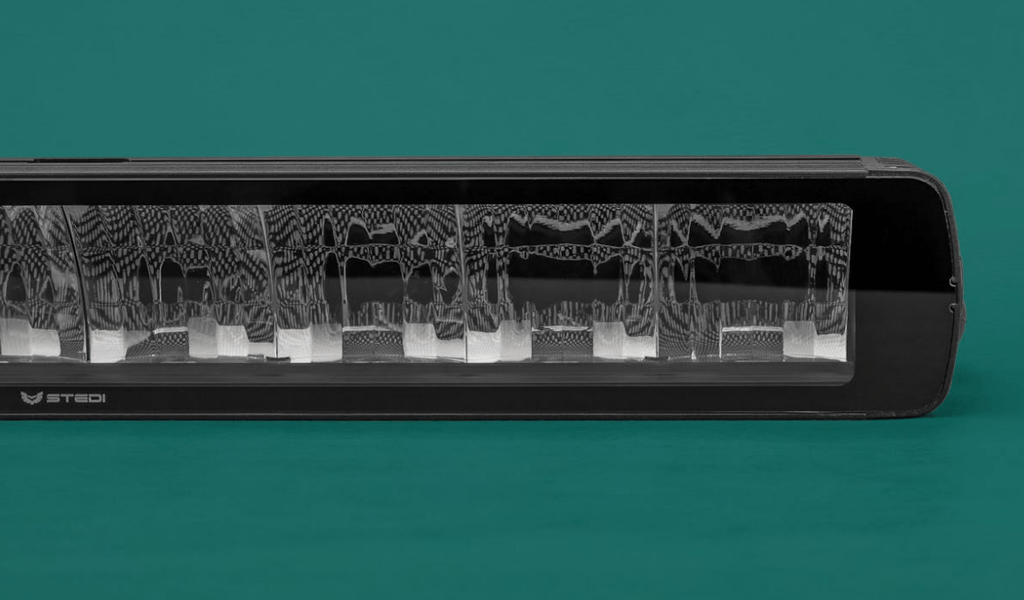

The circuit of the ST-X allows for max output (4010Lm) or reduced output (2310Lm modes), the latter making it legal for road use in New Zealand and European countries. The built-in amber (1500K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.
Tech Specs
| VOLTAGE | 9-36V |
| DRL VOLTAGE | 12-24V compatible |
| AMPERES | 8.5A @ 12V (full power), 3.46A @ 12V (limit power). |
| POWER | 102W (full power). 41.52W (limit power) |
| LUMENS | 4010LM (full power). 2310LM (limit power) |
| COLOUR TEMPERATURE | 5000K |
| AMP RATING | 0.3a |
| PHOTOMETRIC DATA | 1 lux @ 586m (full power), 1 lux @ 445m (limit power) |
| LENS MATERIAL | Optical grade, Hard-Coated LEXAN |
| HOUSING MATERIAL | 6063 EXTRUSION |
| INGRESS PROTECTION | IP68 |
| CANDELAS | 344017 (full power), 189429 (limit power) |
| CONNECTOR | 60cm Cable with DTP 4in |
| OPERATING TEMP | -40°C ~ +60°C |
| CERTIFICATES | R112, ref. 50 and R10 |
| LIFESPAN | 50, 000hrs (LM80) |
| PRODUCT WEIGHT | 2.6kg |
| SHIPPING WEIGHT | 3.1kg |
What's Included
- 1 x 21.5 Inch ST-X-20L LED Light Bar

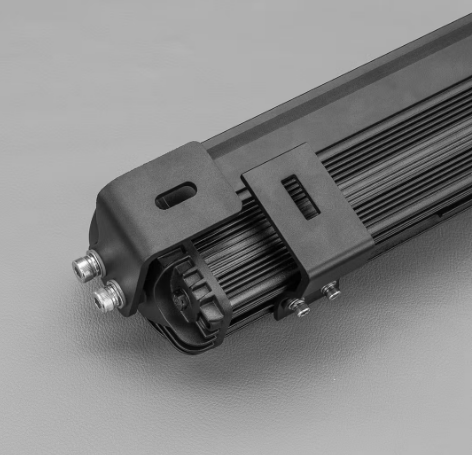

- 2 x Steel Side Brackets
- 4 x Steel Sliding Brackets
- 2 x Brace Support Brackets
- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- Comprehensive 304 Stainless Steel fasteners
- Wiring Instructions
