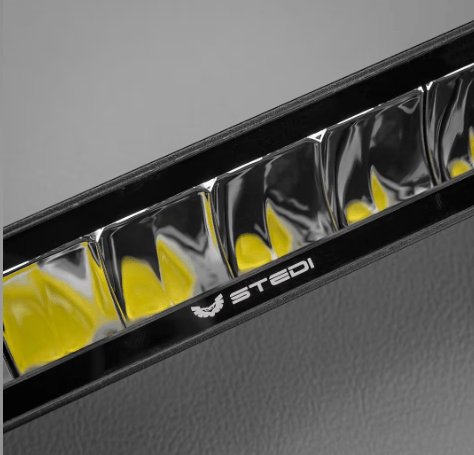

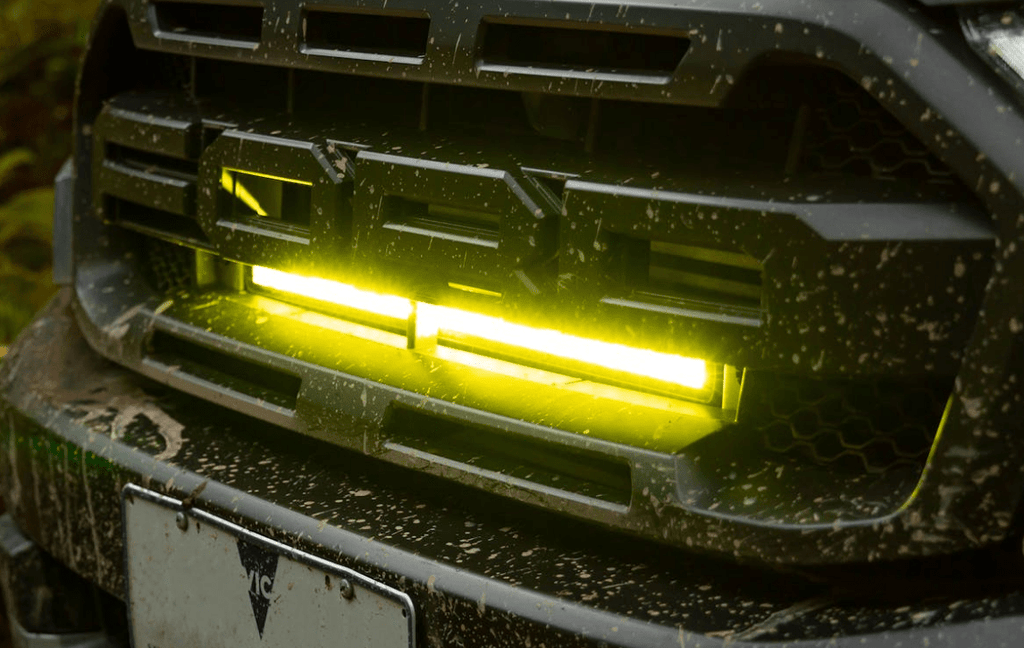

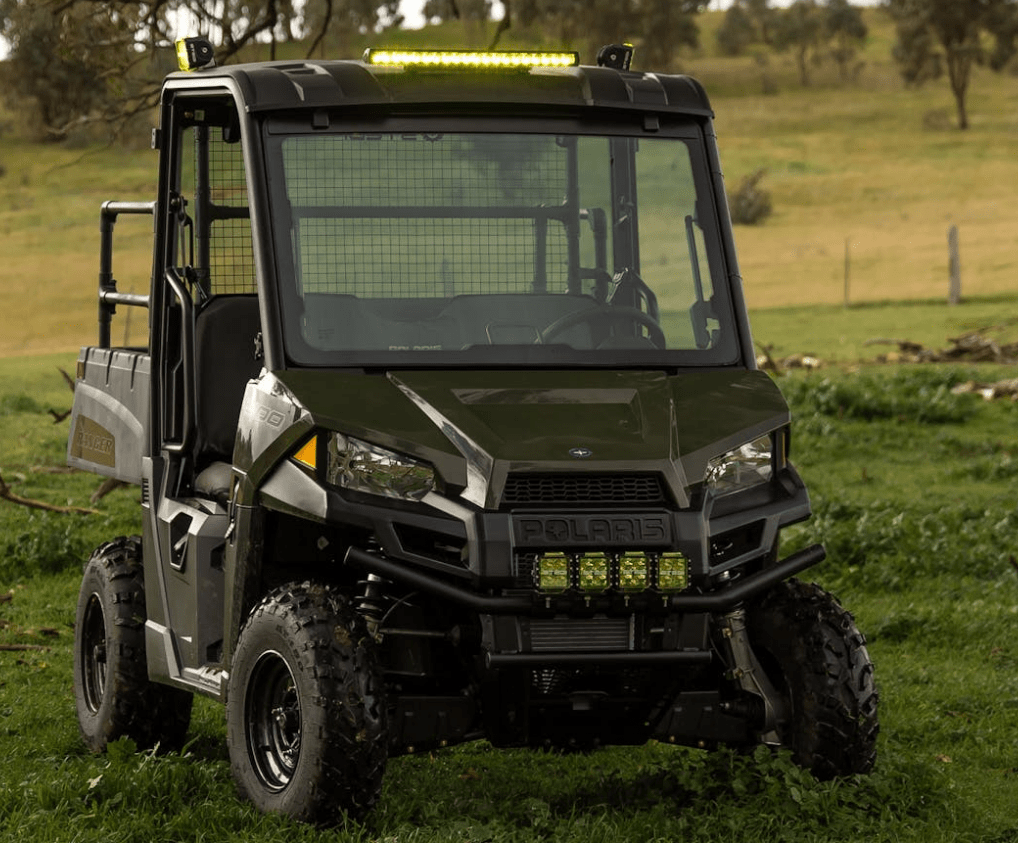

Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

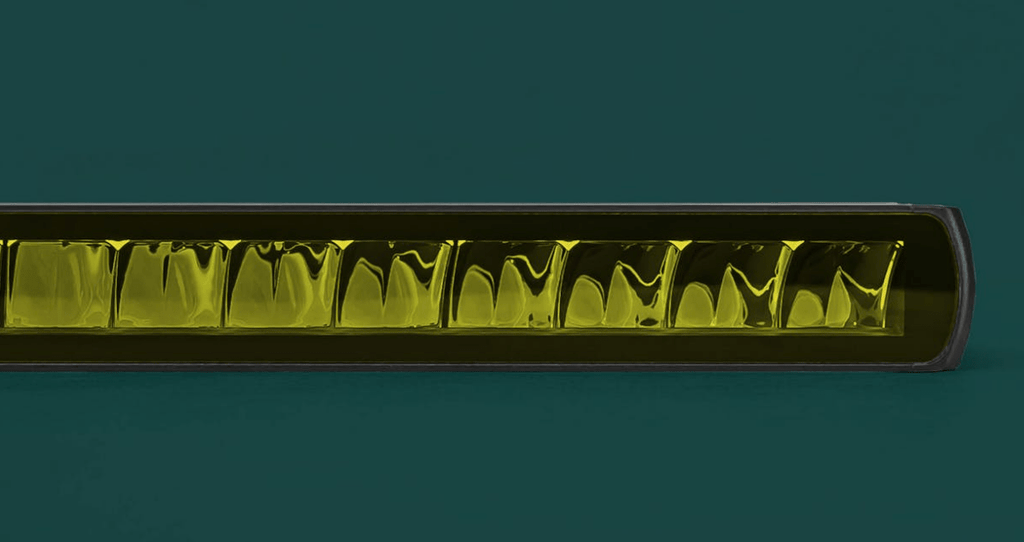

Wide-horizontal beam patterns, coupled with our edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Peirce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.

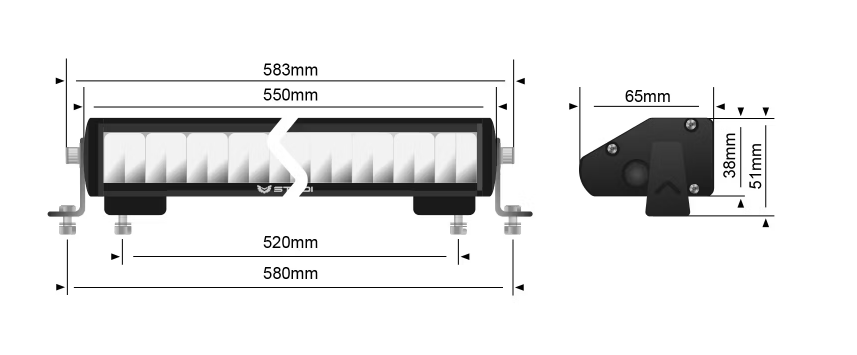

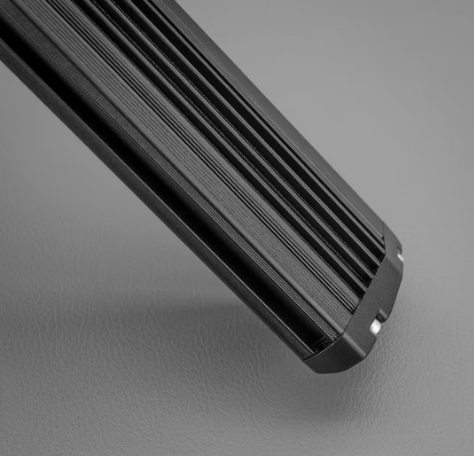

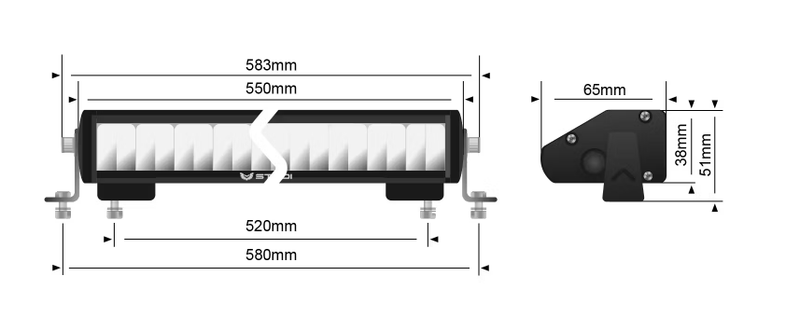

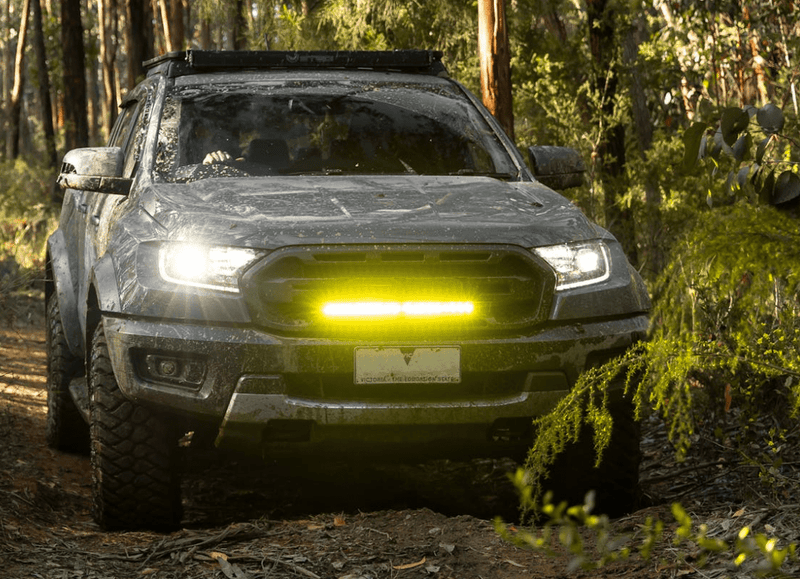

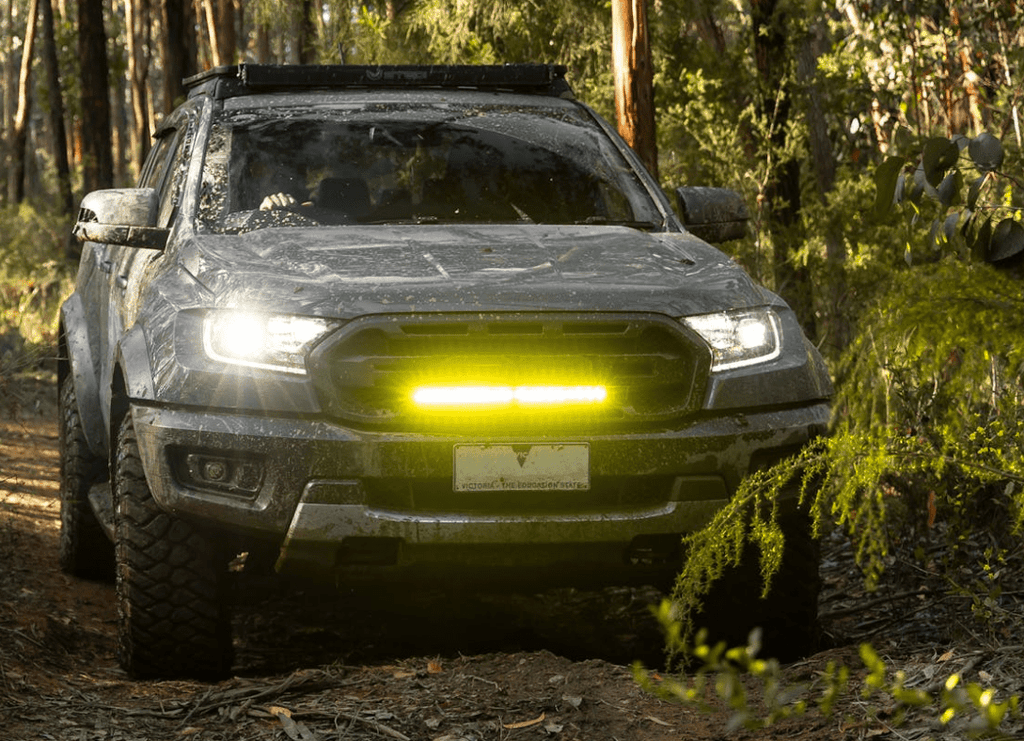

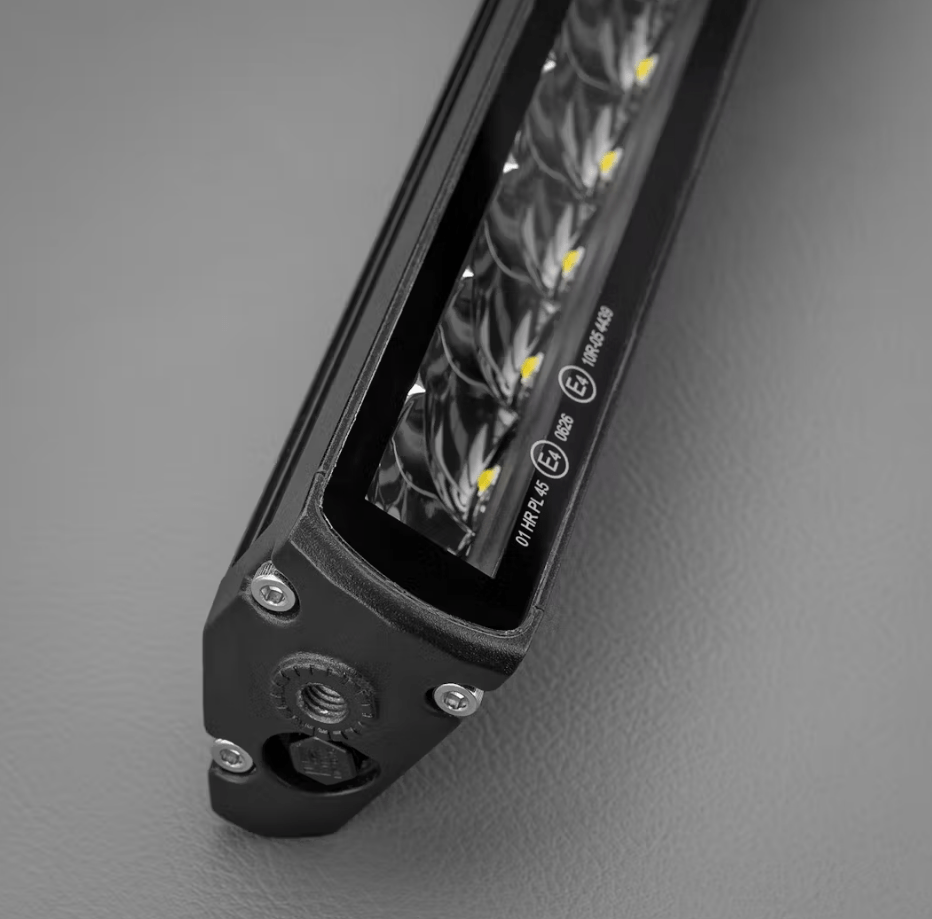

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.
Tech Specs
| LED MANUFACTURER |
OSRAM |
| LED COUNT |
20 |
| VOLTAGE |
9V - 32V |
| CURRENT DRAW (AMPERES) |
8.0a @13.6v |
| LENS MATERIAL |
Optical Grade, Makrolon |
| RAW LUMENS |
5,920Lm |
| PEAK INTENSITY (CANDELA) |
219,792cd |
| HOUSING MATERIAL |
A360.0 Cast face plate, extruded Aluminum heat sink |
| LUMEN MAINTENANCE |
50,000 (LM80) |
| INGRESS PROTECTION |
IP68 |
| OPERATING TEMP |
-40°C~+150°C |
| WEIGHT |
1.290kg |
What's Included
- ST1K 21.5 Inch LED Light Bar
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
