Description
Our ST3301 Series 24.5 Inch LED Light Bar is designed to offer a high volume of light in the mid-range, with excellent visibility on the road shoulders. Compared to bars like our ST4K & ST3K (which have a longer beam distance but slightly less brightness in comparison) our ST3301 forms a larger diameter spot that blends homogeneously with its wide beam. The ST3301 range is perfectly suited for the customer that is concerned about wildlife running out from the road shoulders or those who need a huge amount of brightness and coverage in the mid short and mid-range.
Our ST3301 builds from the character of the ST3K and ST4K, by offering a higher Lumen output with an excellent mid-range volume. The ST3301 Pro packs a greater punch than its predecessor when it comes to light penetration, offering a light reach of up to 544m at the 1 Lux mark. With this increase in light, we also managed to maintain a streamlined design, keeping the weight of the 24.5" Bar at 2.49kg.
Tech Specs
| LUMEN | 13,600Lm (RAW) 7,650Lm (Effective) |
| PEAK INTENSITY (CANDELA) | 295,936cd |
| OPERATING VOLTAGE | 10-45V DC |
| WATERPROOF RATE | IP 68 |
| LED | 16 x OSRAM™ |
| COLOUR TEMPERATURE | 5600K |
| MATERIAL | Die-Cast Aluminium |
| LENS | GE Lexan™ |
| MOUNTING BRACKET | Aluminium |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| FLOOD BEAM ANGLE | 45° |
| SPOT BEAM ANGLE | 11° |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 2.495kg |
| CURRENT DRAW | 9.7A @ 13.6v |
| OPERATING TEMP | -40°C to 60°C |
What's Included
- ST3301 Pro 24.5 INCH 28 LED LIGHT BAR
- Stainless Bolt and Nut Set

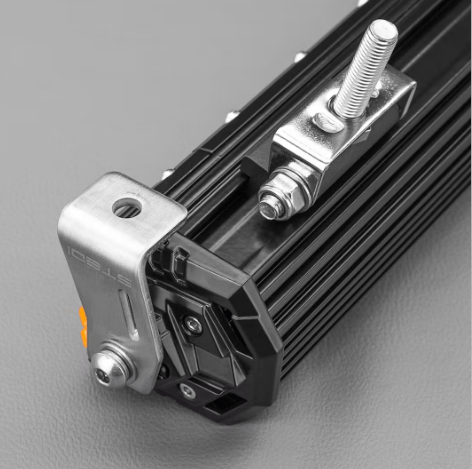

- Sliding Lower Mounting Brackets + Stainless Steel Side Brackets

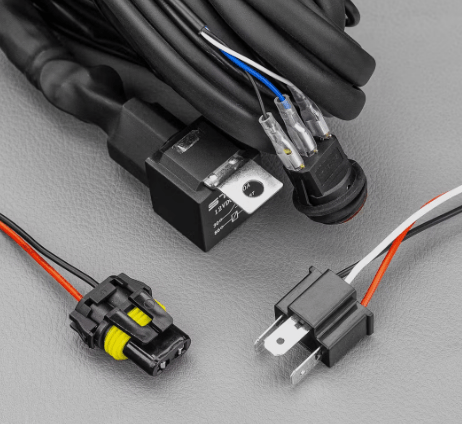

- Quick-Fit High Beam Wiring Harness 12v Relay, Wiring Kit and On/Off Switch

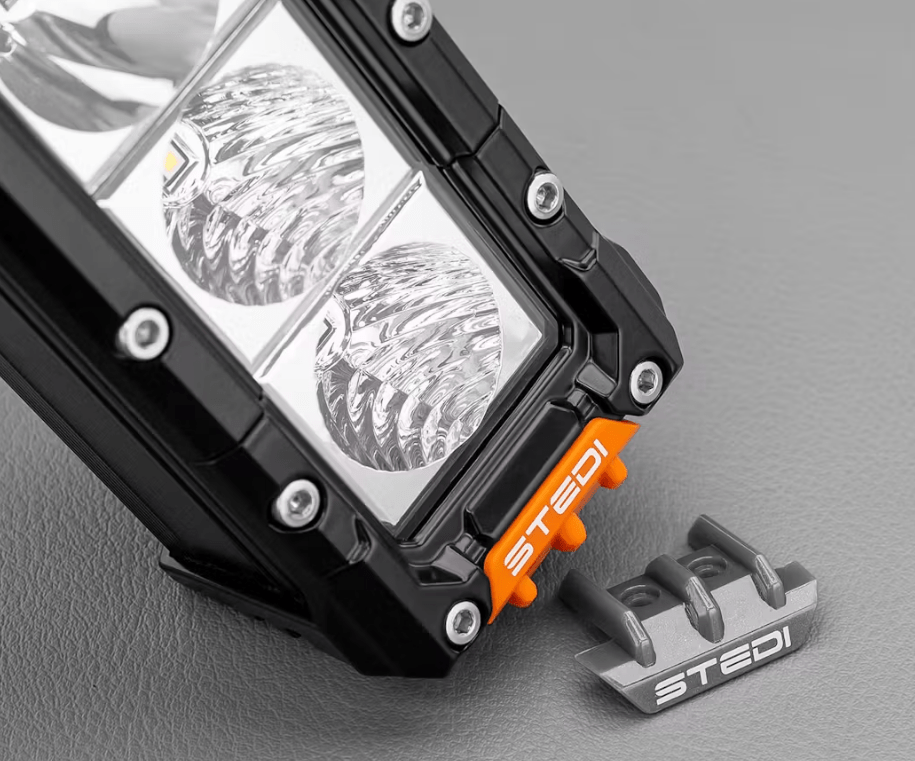

- 2 x Orange Side Caps
- 2 x Grey Side Caps
- HB3 and H4 Piggy Back Adaptors
