Note: Towbar Only - addition of wiring (SKU: UNT351) & 7 Pin Flat Socket (SKU: UNT032BLIS) also required..
Note: Confirm this product fits your vehicle in the "vehicle application" table below.
*Cab Chassis Only

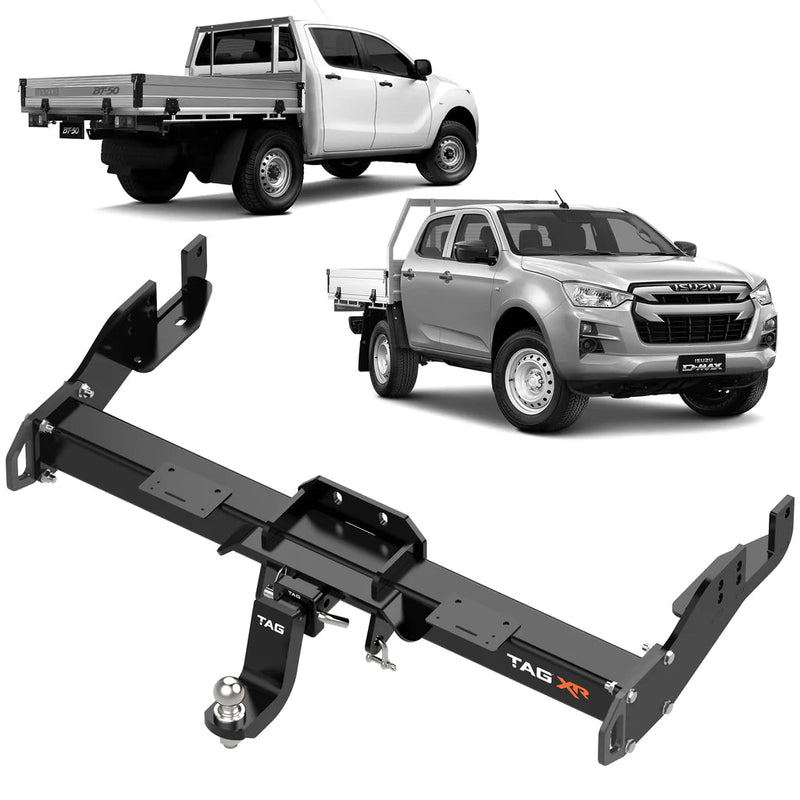

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Featuring:
-
89mm x 89mm Extreme Duty Reinforced Crossbar
-
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
-
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
-
Highly durable, textured Extreme Duty Powder Coated Finish
-
Dual top-mounted Trailer & Anderson Plug Mounts
-
Class 4 Towbar - 50mm Square Hitch Receiver
-
TAG Limited Lifetime Warranty
-
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Specifications:
-
Towbar Class: Heavy Duty (4x4 Recovery)
-
Coating: Powder-Coated
-
Hitch Type: 50mm Square Hitch Receiver
-
Recovery Points: 2
-
Recovery Loadtested: 4500
-
Fitting Time Approx: 1 hr
-
Remove Bumper: Yes
-
Ball Weight: 350
-
Towing Capacity: 3500
Vehicle Application:
MAKE |
MODEL |
FROM |
TO |
BODY |
SERIES |
ENGINE |
VARIANT |
DRIVETRAIN |
ISUZU |
D-MAX |
07/2021 |
- |
Cab Chassis |
TFR, TFS |
RZ4E-TC | 1.9L | Diesel |
|
RWD |
ISUZU |
D-MAX |
07/2020 |
- |
Cab Chassis |
|
4JJ3-TCX | 3.0L | Diesel |
SX |
Automatic/Manual 4WD |
ISUZU |
D-MAX |
07/2020 |
- |
Cab Chassis |
|
4JJ3-TCX | 3.0L | Diesel |
SX |
Automatic/Manual RWD |
ISUZU |
D-MAX |
07/2020 |
- |
Cab Chassis |
TFR, TFS |
4JJ3-TCX | 3.0L | Diesel |
|
RWD |
ISUZU |
D-MAX |
07/2020 |
- |
Cab Chassis |
TFR, TFS |
3.0L | Diesel |
DDI |
4WD |
ISUZU |
D-MAX |
07/2020 |
- |
Cab Chassis |
TFR, TFS |
4JJ3-TCX | 3.0L | Diesel |
DDI |
AWD |
ISUZU |
D-MAX |
07/2020 |
- |
Cab Chassis |
TFR, TFS |
4JJ3-TCX | 3.0L | Diesel |
DDI |
RWD |
MAKE |
MODEL |
FROM |
TO |
BODY |
SERIES |
ENGINE |
VARIANT |
DRIVETRAIN |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
B30B |
4JJ3-TCX | 3.0L | Diesel |
XT |
Automatic/Manual 4WD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
B30B |
4JJ3-TCX | 3.0L | Diesel |
XT |
Automatic/Manual 4WD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
B30B |
4JJ3-TCX | 3.0L | Diesel |
XT |
Automatic RWD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
B30B |
4JJ3-TCX | 3.0L | Diesel |
XT |
Automatic RWD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
B30B |
4JJ3-TCX | 3.0L | Diesel |
XT FREESTYLE |
Automatic/Manual 4WD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
B30B |
4JJ3-TCX | 3.0L | Diesel |
XT FREESTYLE |
Automatic RWD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
TF |
4JJ3-TCX | 3.0L | Diesel |
TFR40JPR, TFR40JDR |
RWD |
MAZDA |
BT-50 |
07/2020 |
- |
Cab Chassis |
TF |
4JJ3-TCX | 3.0L | Diesel |
TFS40JPR, TFS40JDR |
AWD |
