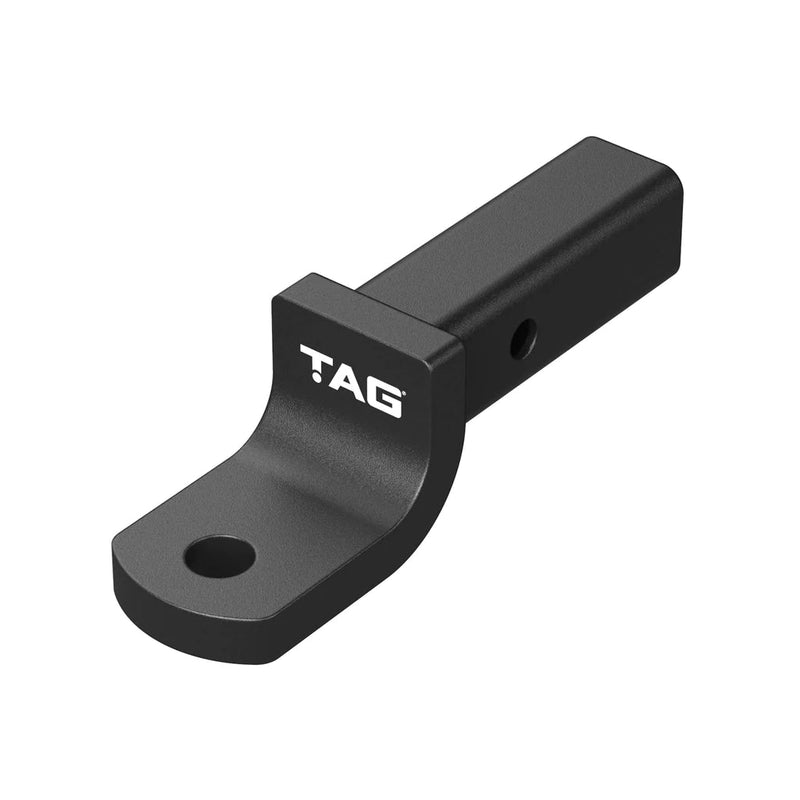

TAG Tow Ball Mount - 143mm Long, 90° Face, 50mm Square Hitch

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

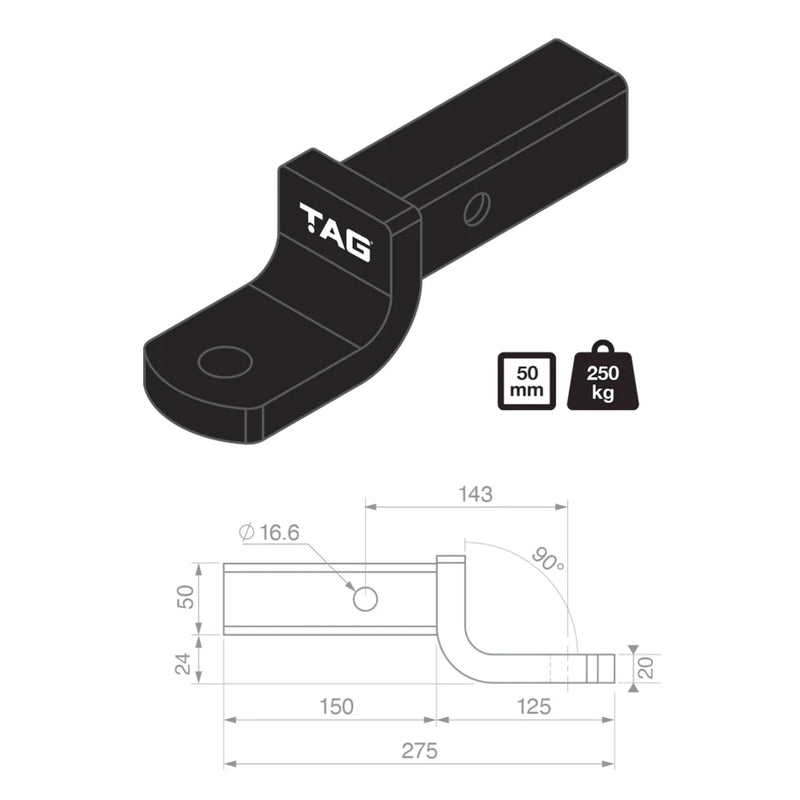

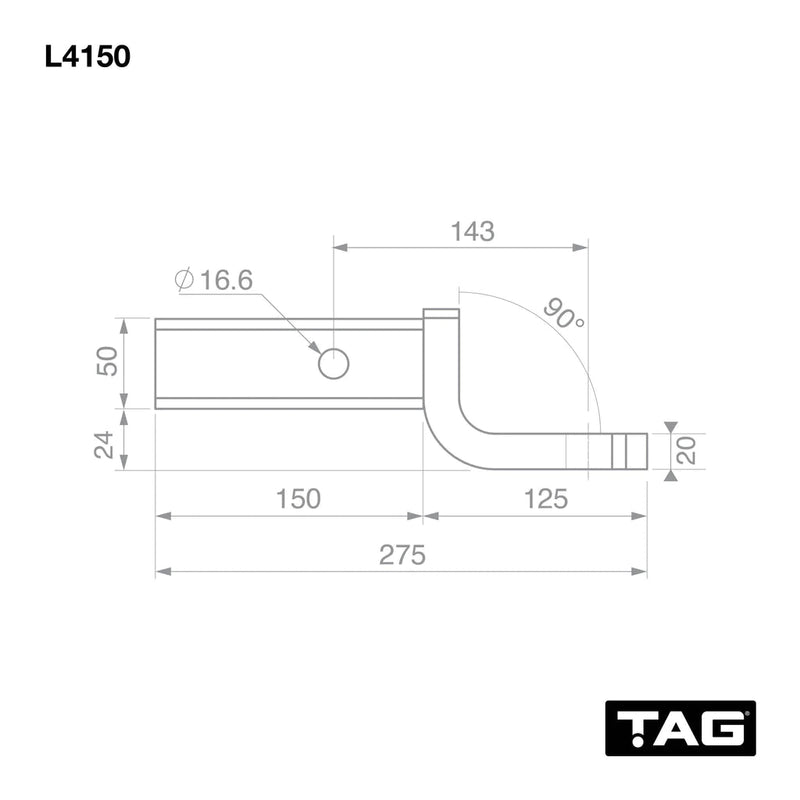

• 143mm Long (Hitch Pin Hole to Tow Ball Hole)

• 90° Tongue Face

• Drop: 4mm

• Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

• 2500kg Gross Trailer Weight

• 250kg Ball Weight

• Drop Mode or Rise Mode

• Durable Powder-Coated Finish

• ADR 62/02 Compliant

• TAG Limited Lifetime Warranty

Tow Ball, R-Clip & Hitch Pin sold separately.

Specifications

• Tongue Face: 90°
• Hitch Type: Heavy Duty 50mm Square
• Ball Weight: 250
• Coating: Powder Coated
• Length Pin To Ball: 143mm
• Drop: 4mm
• Gross Trailer Weight: 2500
• Tow Ball Mount Class: Heavy Duty (Class 4)
