We are proud to welcome the Sport Plus into the STEDI™ family—a reimagined evolution of a timeless classic and one of the most cost-effective driving lights on the market, all without compromising performance or quality. This advanced lighting solution is meticulously engineered to enhance visibility in any driving condition, making it the perfect companion for challenging off-road environments and diverse seasonal elements. As the saying goes, “Why reinvent the wheel?” or enhance something already deemed exceptional? At STEDI™, we believe in the power of forward-thinking and continuous improvement. Our engineering and design teams embraced this challenge, and the result speaks for itself.

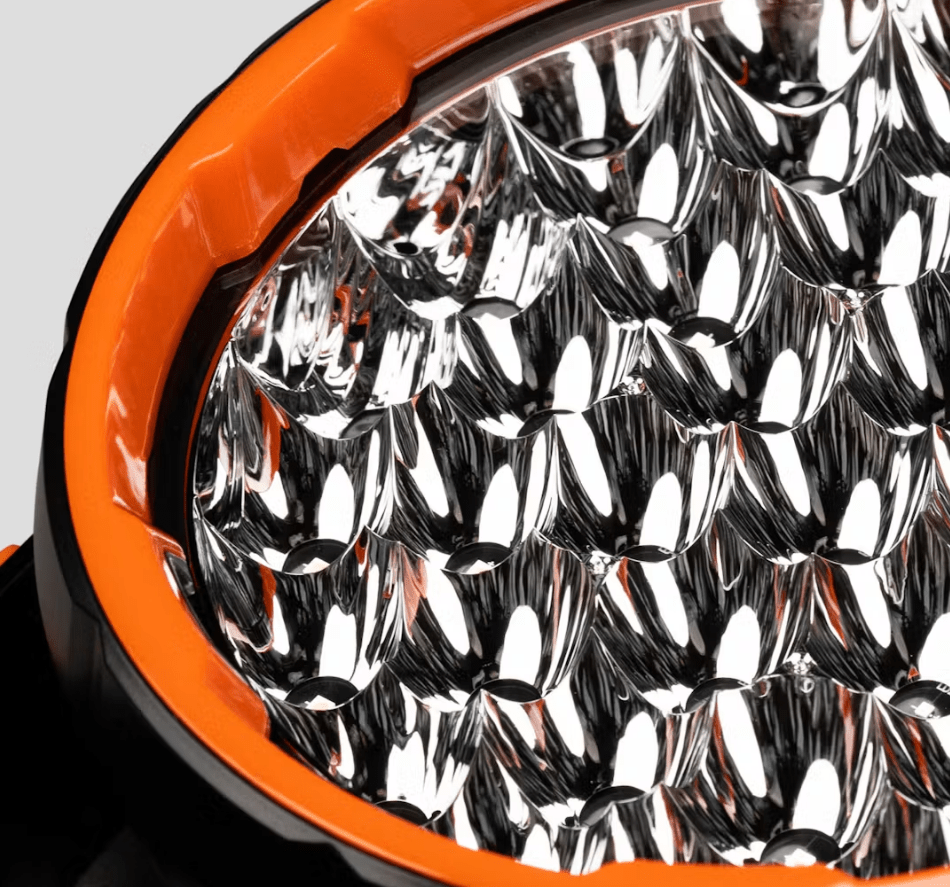

The Sport Plus seamlessly elevates the renowned Type-X™ Sport series with the signature STEDI™ refinement, delivering superior performance that even exceeded our own expectations. By integrating state-of-the-art technology and exceptional design, the Sport Plus represents a new pinnacle in driving light innovation. The Sport Plus is available in the same sizing options as its predecessors—8.5-inch and 7-inch models—featuring a combination of spot and flood reflectors for optimal optical performance.
For added convenience, every Sport Plus model comes equipped with everything needed for installation straight out of the box, excluding vehicle-specific piggyback adapters. Furthermore, all Sport Plus models, except the 7", can seamlessly replace their legacy counterparts. The 7" Sport Plus, however, uses a DTP connector, which differs from the DT connector of its legacy version, making it incompatible as a direct replacement. This update ensures compatibility is clear, allowing customers to upgrade with confidence and ease.
Tech Specs
| LED |
30x OSRAM™ + 7x CREE LEDs |
| RAW LUMENS |
14,000 Lm (each) |
| TESTED LUMENS |
11,660 Lm (each) | 23,320 Lm (Pair) |
| AMP DRAW |
9.0A @ 12v (each) |
| POWER DRAW |
108W (each) |
| CANDELA |
1,067,828 cd (Pair) |
| BEAM PATTERN |
Combo (33 Spot + 4 Flood) |
| INGRESS PROTECTION |
IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) |
5000K |
| VOLTAGE COMPATIBILITY |
10v & 30v |
| LUMEN MAINTENANCE |
50,000 LM-80 |
| WEIGHT |
2.24kg (each) |
| OPERATING TEMP |
-40°C - 60°C |
| PHOTOMETRIC DATA |
| 730 m |
1 Lx (Single) |
| 1,192 m |
1 Lx (Pair) |
What's Included

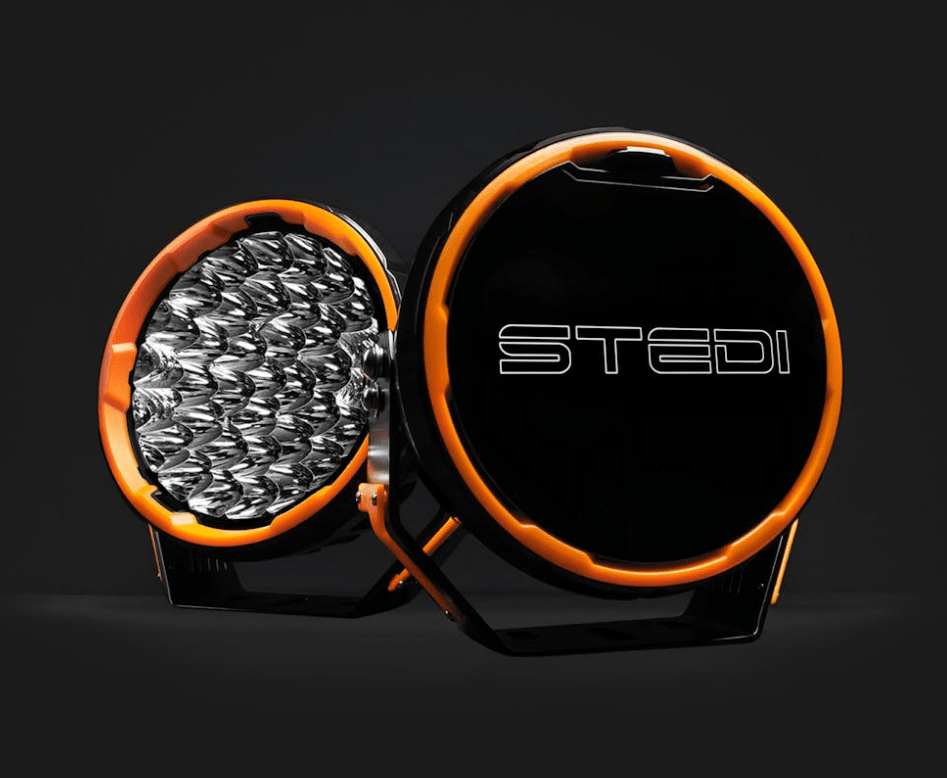

- 2 x STEDI™ 7" Type-X™ Sport Plus LED Driving Lights Black
- 2 x Protective STEDI™ Blackout Covers
- 2 x Orange Coloured Fascias
- 2 x Grey Coloured Fascias

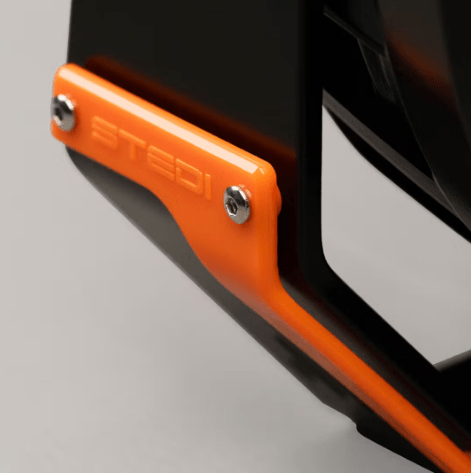

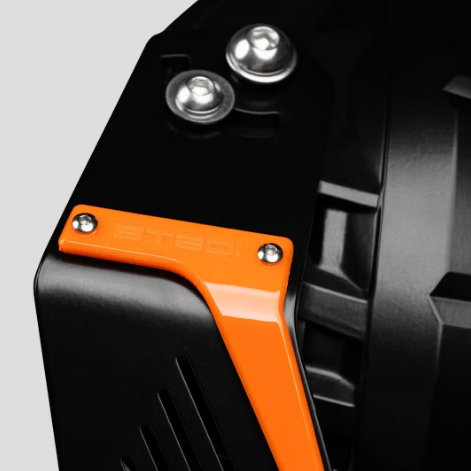

- 2 x Orange Coloured Shoulder Trim
- 2 x Grey Coloured Shoulder Trim
- 1 x Fascia Key Tool
- 1 x STEDI™ Smart High Beam Wiring Harness

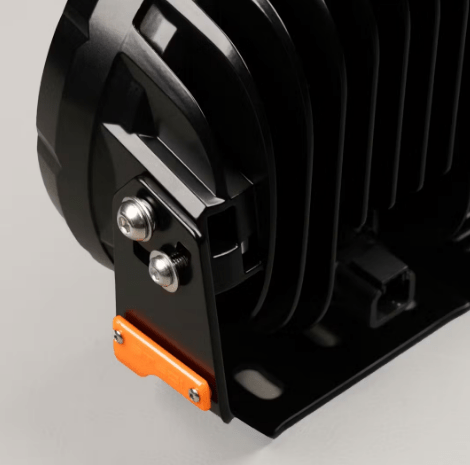

- 2 x Stainless Steel Mounting Brackets
- 2 x Mounting Hardware (Set)
- 2 x Bracket Shock Dampeners
- 1 x Wiring & Fitting Instructions
